Single-Phase Multi-User Meter Boards

Single-phase group-metering boards organise tenant meter positions, incoming distribution and individual outgoing protection. The Hager Australian reference below shows six prewired single-phase positions, rather than a North American socket-meter installation.

Confirm the number and dimensions of utility meters, tenant loads, phase allocation, isolation and sealing requirements in the approved drawings. The pictured cabinet does not include revenue meters and is not evidence of Kenyan utility approval.

Equipment & Range Highlights

Single-phase meteringPictured: Hager VYGMS6W six-way single-phase group-metering enclosure.

Single-Phase Group-Metering Boards

Hager VYGMS6W shows an Australian six-way prewired single-phase group-metering enclosure, with tenant protection and meter wiring positions. Revenue meters are not supplied in the pictured cabinet. Kenya utility spacing, sealing and incoming arrangements are confirmed for each project.

Pictured positions6 single-phase tenants

ReferenceHager VYGMS6W

MetersNot supplied

Tenant protectionPictured: LOVATO Electric Miniature and residual circuit breakers family.

Tenant Circuit Protection & Isolation

LOVATO modular circuit-breaker family reference. Select pole count, rated current, trip curve and breaking capacity for each tenant feeder. A separate RCD or RCBO is required wherever the design calls for residual-current protection; an MCB alone does not provide it.

Poles & currentBy tenant load

Breaking capacityAt system voltage

RCD functionSeparate device or RCBO

Explore Tenant Circuit Protection & Isolation

Single-Phase Board Technical Reference

Selection item	Engineering requirement
Pictured reference	Hager VYGMS6W: six-way Australian prewired single-phase group-metering cabinet; meters not supplied.
Family standards evidence	Hager Australian metering brochure lists AS/NZS 61439 and AS/NZS 3000 for the South Australian group-metering family.
Kenyan configuration	Confirm utility drawings, meter footprint, sealing, incomer, neutral and earthing arrangements before manufacture. Australian references are not KPLC approvals.
Assembly standard	Specify the applicable IEC 61439 part and verification for the actual supplied assembly. AS/NZS references show an IEC-aligned enclosure approach.
Meter supply	Revenue meters, private meters and communication modules are separately defined in the approved schedule.
Protection	Select current, fault performance, residual-current protection and isolation from the design; not from the photograph.

Engineering & Build Highlights

3-phase incoming busbar balances single-phase apartment loads evenly across R, Y, and B phases
Pre-wired with high-temperature flexible copper cables conforming to BS 6004 standards
Dedicated tenant breaker section allows tenants to reset tripped breakers without touching the sealed meter section
Numbered meter positions and tenant unit labelling directories provided inside front door
Concealed internal hinges and padlockable handle prevent unauthorized access and power theft
Removable bottom and top gland plates make incoming and outgoing cabling fast and clean

Target Applications & Sectors

Multi-storey residential apartment blocksGated housing community central meter kiosksCommercial shopping stall complexes & marketsStudent accommodation & hostel blocksSubdivided commercial retail unitsStaff housing residential estates

For a three-phase incoming supply, tenant circuits can be allocated across phases using their expected loads. The design and later measurements determine balance; alternating connections alone does not guarantee equal phase currents.

Yes. Our boards are pre-configured to mount the split meter measurement unit inside the sealed board while routing communication cables to tenant apartments.

Order Single-Phase Meter Boards

Standard 4, 8, 12, and 16-way boards are available off-the-shelf in Nairobi for immediate delivery.

Discuss Your Requirement

Explore your requirements.

Try the tools relevant to single-phase meter boards, compare scenarios, then send the inputs to our team.

Enable JavaScript for live calculations, or ask our engineering team.

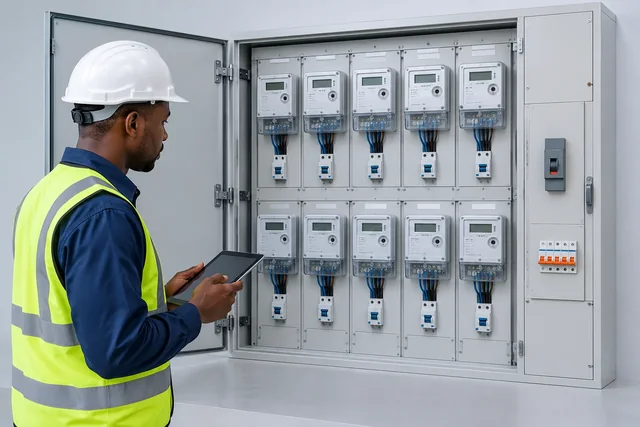

Conceptual engineering scenes illustrate applications. Manufacturer reference photos are identified separately. Confirm exact models, dimensions and ratings before ordering.
