Circuit Breakers & Protection

Coordinated circuit protection from main intake ACBs down to branch RCBOs and Class I+II surge arresters

Open sizing tools ↓Enquire about this application ↗

Low Voltage Circuit Protection

Select circuit protection by function: miniature circuit breakers (MCBs) for final circuits, moulded-case breakers (MCCBs) for feeders, air circuit breakers (ACBs) for main incomers, residual-current devices and surge protection. The range highlights now include a clearly identified MCB image.

Confirm the exact manufacturer reference, rated voltage, pole count, current, breaking capacity and coordination data. Images identify equipment families; they do not prove that every pictured variant has the same rating or that a particular item is in stock.

Equipment & Range Highlights

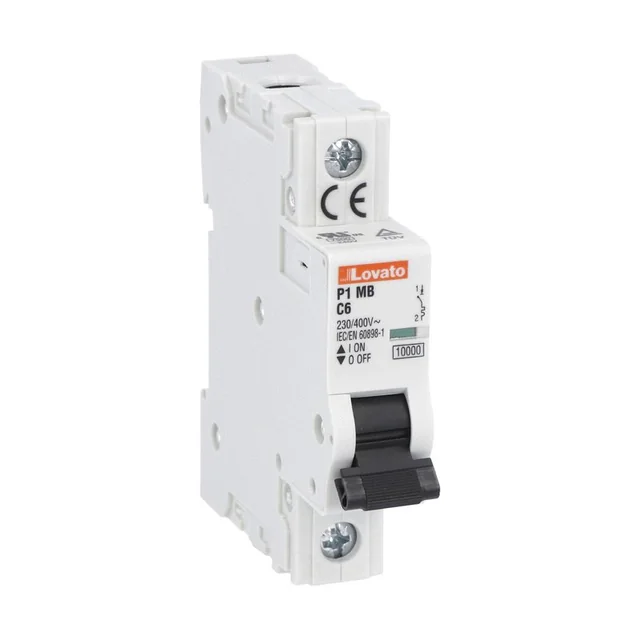

LOVATO P1MB single-pole miniature circuit breaker with visible C6 marking

Miniature circuit breakersPictured: LOVATO Electric P1MB MCB family photograph marked C6.

Miniature Circuit Breakers (MCB)

The LOVATO P1MB family photograph is visibly marked C6: a 6 A, C-curve single-pole MCB. The manufacturer shares this photograph across order codes. Select the exact current rating, pole count and voltage-specific breaking capacity before ordering; an MCB is not an RCD.

Pictured markingC6 · 6 A · 1P

RoleFinal-circuit protection

Order codeSelect exact rating

Explore Miniature Circuit Breakers (MCB)

Feeder protectionPictured: LOVATO Electric Moulded case circuit breakers family.

Moulded-Case Circuit Breakers (MCCB)

LOVATO MCCB family reference for incoming and outgoing feeders. Frame size, trip-unit settings, pole count and Icu/Ics breaking capacities are selected from the exact model datasheet at the installation voltage.

Trip unitModel-dependent

Icu / IcsAt rated voltage

CoordinationManufacturer tables

Explore Moulded-Case Circuit Breakers (MCCB)

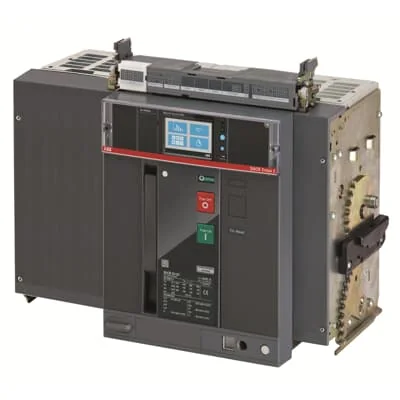

Main-incomer protectionPictured: ABB emax2 acb front.

Air Circuit Breakers (ACB)

ABB Emax 2 air circuit breaker reference for main incomers and large feeders. Choose the exact frame, trip unit, fixed or withdrawable execution and rated breaking capacity. Accessories and communication modules are not assumed to be included.

ReferenceABB Emax 2

ExecutionFixed / withdrawable by model

RatingsExact frame datasheet

Surge protectionPictured: LOVATO Electric Surge protection devices family.

Surge Protection Devices (SPD)

LOVATO surge-protection family reference. Select Type 1, Type 2 or combined devices to suit the lightning-protection design, earthing system and supply voltage, with the manufacturer-specified backup protection.

SPD typeSelect per risk assessment

Uc / UpExact model datasheet

Backup protectionManufacturer specification

Circuit Protection Technical Data

Device	Function	Confirm before selection
MCB	Final-circuit overload and short-circuit protection	Rated current, pole count, trip curve and voltage-specific Icn / Icu. Pictured shared P1MB photo is marked C6.
MCCB	Higher-current feeder and incomer protection	Frame, trip unit, settings, Icu / Ics and tested coordination.
ACB	Large incomers and main feeders	Frame, trip unit, service voltage, fault rating and fixed / withdrawable arrangement.
RCCB / RCBO	Residual-current protection; RCBO also provides overcurrent protection	Device type, rated residual current, pole arrangement and coordinated upstream protection.
SPD	Transient-overvoltage protection	SPD type, Uc, Up, earthing system and backup protective device.

Engineering & Build Highlights

Complete range of 3-pole and 4-pole breakers for TN-S, TN-C-S, and IT network configurations
Comprehensive accessories: shunt trips, undervoltage releases, auxiliary contacts, and motor mechanisms
Type-tested cascading tables to reduce downstream breaker ratings safely without compromising clearance
Lovato Earth leakage relays with external core balance toroid sensors for large feeder circuits
Lockable rotary handles and mechanical door interlocks for maximum operator safety during maintenance

Target Applications & Sectors

Main LV switchboard transformer incomersStandby generator incomers & bus couplersCommercial tenant sub-distribution feedersIndustrial motor branch circuitsData centre critical power distribution pathsSolar inverter AC collector panelboards

Type B trips at 3-5x rated current (resistive loads, domestic lighting); Type C trips at 5-10x rated current (commercial lighting, small motors); Type D trips at 10-20x rated current (high inrush transformers, heavy motors, welding sets).

Yes. We provide manufacturer Type 2 coordination tables combining our Lovato MCCBs/MPCBs, contactors, and overloads for review against the specific fault level and selected protective devices.

Request Protection Sizing & Pricing

Send your circuit schedule or bill of quantities for competitive pricing on genuine certified breakers.
