LV Distribution Switchgear

We supply and assemble low-voltage switchgear, main and sub-distribution boards, transfer panels and protection systems for commercial, industrial and infrastructure projects across Kenya.

Every assembly is configured around the site load schedule, the incoming supply, the prospective fault level, cable entry, access clearances and the OEM equipment you prefer — ABB, Schneider Electric or CHINT.

Specification Reference

Parameter	Specification
Build standard	IEC 61439-1 & 2, applicable verification documents confirmed for the proposed assembly
Rated current	125 A up to 6300 A continuous
System voltage	400 / 415 V AC, 3-phase + neutral, 50 Hz
Fault withstand	25 kA / 1s up to 100 kA / 1s (50 kA / 3s)
Internal separation	Form 1, Form 2b, Form 3b, Form 4a & Form 4b (Type 2 to 7)
Ingress protection	IP31, IP42, IP54 up to IP65

Explore LV Distribution Switchgear Ranges

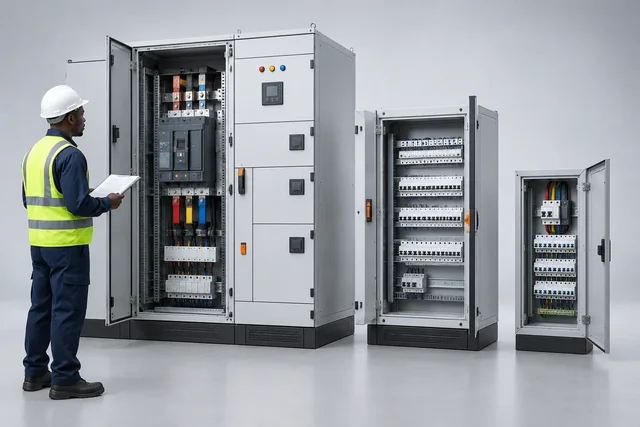

Main & Sub-Distribution Boards — engineering concept

MDB & SDB Panels

Conceptual main & sub-distribution boards scene; exact specifications vary.

Main & Sub-Distribution Boards

Primary incoming cubicles, intermediate sub-main boards and final branch distribution in coordinated Form 2 to Form 4b enclosures.

Rating125 A – 6300 A

FormForm 2 – 4b

Fault LevelUp to 100 kA

View Range

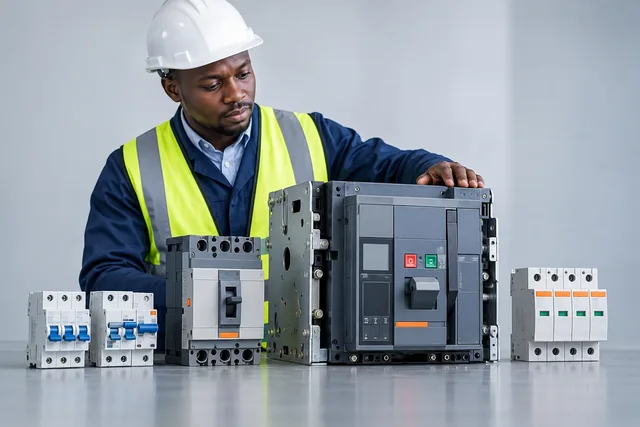

Circuit Breakers & Protection — engineering concept

Circuit Protection

Conceptual circuit breakers & protection scene; exact specifications vary.

Circuit Breakers & Protection

ACBs, MCCBs, MCBs, RCDs and Class I+II surge arresters coordinated for total selectivity and maximum uptime.

DevicesACB • MCCB • MCB

Poles3P / 4P

StandardsIEC 60947-2

View Range

Complete transfer assemblyPictured: LOVATO Electric ATP0160T4A230C600A enclosed automatic transfer switch.

Automatic & Manual Transfer Panels

LOVATO ATP0160T4A230C600A is pictured as a complete enclosed automatic transfer switch with four-pole contactors and an ATL600 controller. The reference model is 160 A AC-1 with a 230 V AC auxiliary supply and an IP65 enclosure; it is distinct from a controller or a bare switch.

Reference current160 A AC-1

Auxiliary supply230 V AC

Assembly referenceIEC 61439-2 · IP65

Explore Automatic & Manual Transfer Panels

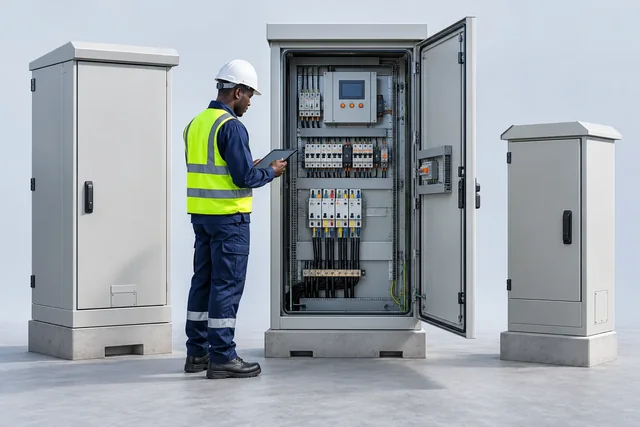

Feeder Pillars & Lighting Control Panels — engineering concept

Outdoor Distribution

Conceptual feeder pillars & lighting control panels scene; exact specifications vary.

Feeder Pillars & Lighting Control Panels

Weatherproof external distribution pillars and public/industrial lighting control panels built in galvanised and stainless enclosures.

IngressIP54 / IP65

MaterialGalvanised / 316 SS

ControlsPhotocell / Astro Timer

View Range

Solar AC Combiner Boards — engineering concept

Renewable Power

Conceptual solar ac combiner boards scene; exact specifications vary.

Solar AC Combiner Boards

Safe collection and grid integration of multiple string inverters with built-in AC disconnects, surge protection and revenue-grade metering.

Voltage400 V / 800 V AC

ProtectionType 1+2 SPD & MCCB

InvertersMulti-String Inputs

View Range

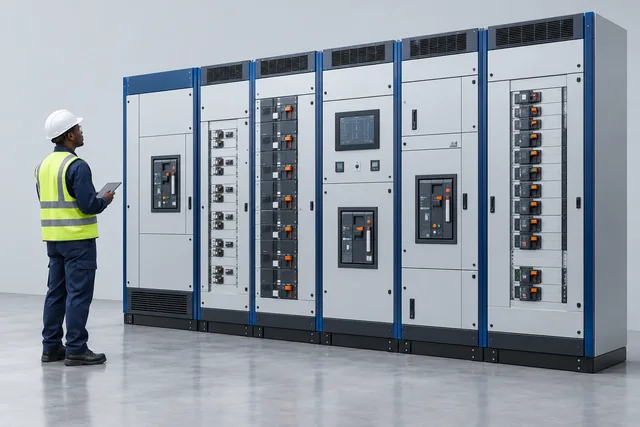

Panels For Data Centres — engineering concept

Critical Infrastructure

Conceptual panels for data centres scene; exact specifications vary.

Panels For Data Centres

Ultra-reliable dual-bus 2N/N+1 distribution switchboards with branch circuit power metering and Form 4b compartmentalised architecture.

Topology2N / N+1 Dual Bus

MonitoringBCMS Modbus / SNMP

FormForm 4b Type 7

View Range

Either. We engineer from your single line diagram and load schedule, or build to an approved consultant design and issue GA drawings for sign-off.

Typical lead time runs from drawing approval; standard boards are quicker than Form 4 lineups with imported ACBs. We confirm the programme with the quotation.

Testing requirements and records are agreed for each assembly. Ask the team to confirm the applicable IEC 61439 checks for your scope.

We engineer busbar systems braced from 25 kA / 1s up to 100 kA / 1s (and 50 kA for 3 seconds) depending on your transformer capacity, impedance and upstream network stiffness. Fault rating and applicable verification documents are confirmed for the proposed assembly.

Request a LV Distribution Switchgear build

Share the single line diagram and load schedule and we will engineer the assembly around your requirements.
