Power Quality & Correction

Q: How much does low power factor cost my business on the KPLC bill?

KPLC bills commercial and industrial consumers for apparent power (kVA) or applies direct low-power-factor penalty surcharges when average power factor falls below 0.90. An APFC bank typically pays for itself within 4 to 12 months in direct electricity bill savings.

Q: When do I need detuned reactors instead of standard capacitors?

If your plant has non-linear loads (such as VFDs, rectifiers, computers, or UPS systems) exceeding 15% to 20% of total transformer capacity, harmonic currents will cause standard capacitors to resonate, overheat, and fail. Detuned reactors block harmonics and protect the capacitors.

Eliminate KPLC power-factor penalties, mitigate harmonic distortion, and optimize electrical network efficiency

Power Quality & Correction — engineering concept

Open sizing tools ↓Enquire about this application ↗Related application guide ↗

Power Quality & Correction Systems

Poor power quality causes high electricity bills from KPLC low-power-factor surcharges, transformer overheating, nuisance circuit breaker tripping, and premature failure of sensitive electronic machinery. Nairobi Power Engineers engineers, fabricates and commissions custom Power Quality Correction solutions to restore clean, efficient electrical power.

Utilizing premium Lovato Electric DCRG/DCRL digital power factor controllers, dedicated capacitor switching contactors with damping resistors, heavy-duty self-healing dry capacitors, and Active Harmonic Filters (AHF), power-factor and harmonic targets are agreed after reviewing measured load, harmonics and the proposed equipment.

Equipment & Range Highlights

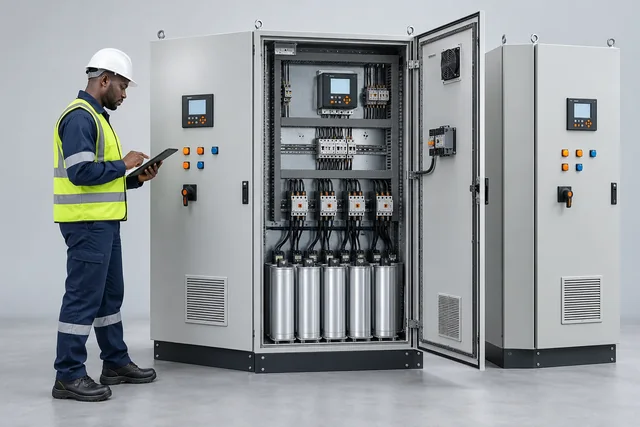

Automatic Power Factor Correction (APFC) Banks — engineering concept

APFC Solutions • Up to 1200 kvar

Conceptual automatic power factor correction (apfc) banks scene; exact specifications vary.

Automatic Power Factor Correction (APFC) Banks

Microprocessor-controlled multistage capacitor banks that dynamically switch capacitor steps to maintain power factor above 0.98 under varying plant loads.

Rating25 kvar – 1200 kvar

Steps4 to 16 Automatic Steps

ControllerLovato DCRG8 / DCRL

Explore Details

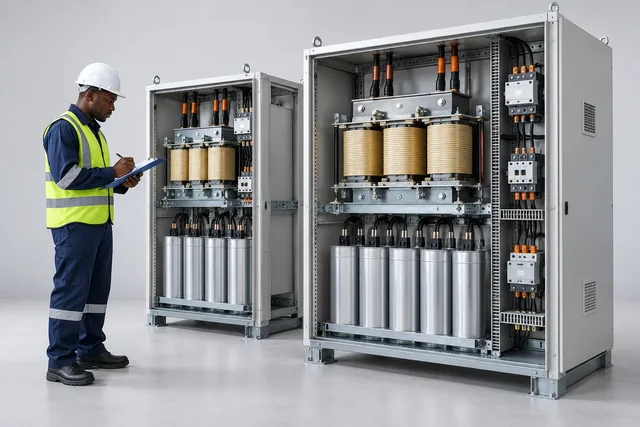

Detuned Reactor Banks — engineering concept

Harmonic Blocking • Detuned 7% / 14%

Conceptual detuned reactor banks scene; exact specifications vary.

Detuned Reactor Harmonic Filter Banks

Capacitor banks coupled in series with heavy iron-core detuned reactors (tuned to 189 Hz or 134 Hz) to prevent dangerous harmonic resonance.

Detuningp = 7% (189 Hz) • 14% (134 Hz)

ProtectionThermal Overload Microswitches

StandardIEC 60076-6

Explore Details

Active Harmonic Filters & SVGs — engineering concept

Active Filtering • Dynamic Cancellation

Conceptual active harmonic filters & svgs scene; exact specifications vary.

Active Harmonic Filters (AHF) & Static Var Gen (SVG)

IGBT-based real-time power electronic filters that inject opposing harmonic currents to cancel 2nd to 50th order harmonics in under 5 milliseconds.

Response< 5 ms Ultra-Fast

Harmonics2nd to 50th Order (THD-i < 3%)

Capacity30 A to 600 A per unit

Explore Details

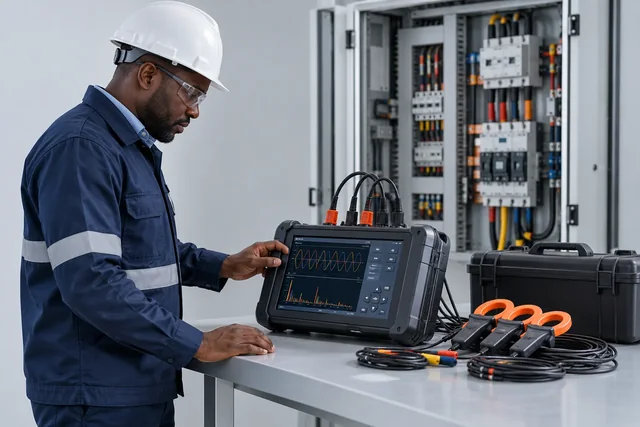

Power Quality Metering & Auditing — engineering concept

Metering & Auditing • Class 0.2s

Conceptual power quality metering & auditing scene; exact specifications vary.

Power Quality Metering & On-Site Audits

Comprehensive Class A power quality logging, IEEE 519 compliance verification, harmonic spectrum analysis, and KPLC penalty elimination surveys.

StandardsIEC 61000-4-30 Class A

Surveys7-Day On-Site Data Logging

ReportingFull Engineering Recommendations

Explore Details

Power Quality Reference Specifications

Parameter	Specification Details
Rated System Voltage	400 / 415 V AC, 3-phase, 50 Hz (TN-S / TN-C-S)
Capacitor Dielectric Technology	Heavy-duty metallized polypropylene, self-healing, dry resin filled (gas-free)
Capacitor Voltage Rating	440 V / 480 V / 525 V continuous (withstands harmonic overvoltages)
Switching Contactors	Lovato BF...K series with early-make damping contacts for inrush suppression
Automatic Controller	Lovato DCRG8 / DCRL8 with graphic LCD, temperature sensor, and Modbus RTU
Enclosure Construction	IP31 / IP43 / IP54 sheet steel cubicle with thermostat-controlled cooling fans

Engineering & Build Highlights

Lovato DCRG digital controllers automatically rotate step usage to equalize capacitor wear and extend service life
Heavy-duty 480V/525V rated capacitors prevent breakdown from typical East African grid overvoltages
Specialized capacitor contactors (Lovato BF...K) feature pre-insertion resistors limiting inrush currents to < 30x In
Detuned iron-core reactors prevent parallel resonance with upstream distribution transformers
Integrated over-temperature, overcurrent, and individual capacitor step discharge safety resistors
Full Modbus RTU/TCP telemetry allowing real-time power factor and kvar tracking on building BMS

Target Applications & Sectors

Manufacturing factories with large electric motor loadsFlour mills, grain elevators & tea processing factoriesCommercial office towers & shopping complexesHospitals & diagnostic healthcare centresExtrusion, plastic injection & steel rolling millsMunicipal water booster & wastewater pumping stations

KPLC bills commercial and industrial consumers for apparent power (kVA) or applies direct low-power-factor penalty surcharges when average power factor falls below 0.90. An APFC bank typically pays for itself within 4 to 12 months in direct electricity bill savings.

If your plant has non-linear loads (such as VFDs, rectifiers, computers, or UPS systems) exceeding 15% to 20% of total transformer capacity, harmonic currents will cause standard capacitors to resonate, overheat, and fail. Detuned reactors block harmonics and protect the capacitors.

Book a Power Quality Audit

Send your KPLC electricity bills and single-line diagram for a free power factor penalty analysis and sizing proposal.
