ATS, MTS & Generator Synchronising Panels

Compare complete ATS assemblies, transfer controllers and power-switching devices

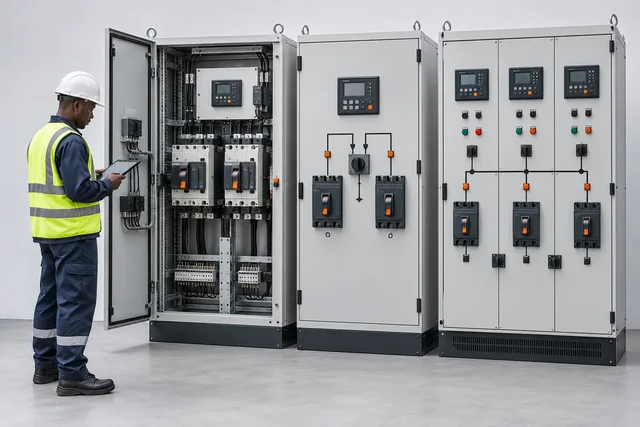

ATS, MTS & Generator Synchronising Panels — engineering concept
Open sizing tools ↓Enquire about this application ↗

Automatic Transfer Switches & Generator Control

Automatic and manual transfer panels connect a load to its selected utility or standby source. A complete ATS, its controller and its power-switching device are different items; the manufacturer references below show each one separately.

NPE can develop the transfer arrangement from your single-line diagram, generator data and load priorities. Confirm current, utilisation category, fault duty, control supply, neutral switching and transfer delays before selecting equipment. Generator synchronising requires a separate engineered design.

Equipment & Range Highlights

LOVATO Electric ATP0160T4A230C600A enclosed automatic transfer switch
Complete transfer assemblyPictured: LOVATO Electric ATP0160T4A230C600A enclosed automatic transfer switch.

Enclosed Automatic Transfer Switch (ATS)

LOVATO ATP0160T4A230C600A is pictured as a complete enclosed automatic transfer switch with four-pole contactors and an ATL600 controller. The reference model is 160 A AC-1 with a 230 V AC auxiliary supply and an IP65 enclosure; it is distinct from a controller or a bare switch.

Reference current160 A AC-1
Auxiliary supply230 V AC
Assembly referenceIEC 61439-2 · IP65

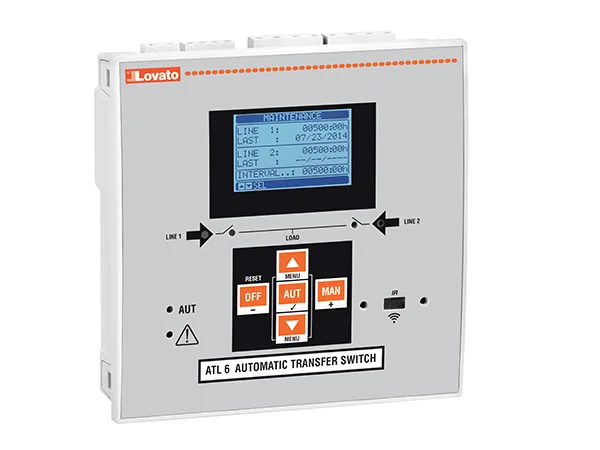

LOVATO Electric ATL600 automatic transfer controller
Control device · not power switchingPictured: LOVATO Electric ATL600 automatic transfer controller.

ATL600 Automatic Transfer Controller

LOVATO ATL600 is a two-source automatic transfer controller with an LCD and optical programming port, supplied at 110–240 V AC. It supervises source availability and operates a separately selected power-switching assembly. Ethernet and RS485 are not built into this model.

Sources2
Controller supply110–240 V AC
ProgrammingOptical port

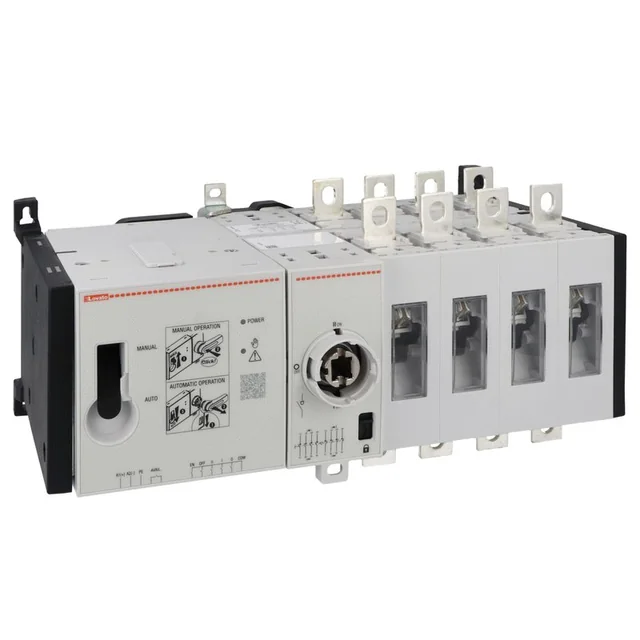

LOVATO Electric GLCMB0200T4A230 motorised four-pole changeover switch
Power-switching componentPictured: LOVATO Electric GLCMB0200T4A230 motorised four-pole changeover switch.

Motorised Four-Pole Changeover Switch

LOVATO GLCMB0200T4A230 is pictured as a motorised 200 A four-pole changeover switch. Its 208–277 V AC motor supply is distinct from the load voltage. Add the selected controller, protective devices, wiring and enclosure for a complete engineered transfer panel.

Reference current200 A
Poles4P
Motor supply208–277 V AC

Transfer Switch Engineering Specifications

Selection itemEngineering requirement
Complete ATS referenceLOVATO ATP0160T4A230C600A: 160 A AC-1, four-pole contactors, 230 V AC auxiliary supply, IP65 enclosure.
Controller referenceATL600: two sources, 110–240 V AC supply, optical programming port; no built-in Ethernet / RS485.
Changeover referenceGLCMB0200T4A230: 200 A, four poles, 208–277 V AC motor supply; separate controller and enclosure.
Transfer sequenceSet source qualification, generator start, changeover and return delays for the selected devices and loads. No universal transfer-time guarantee.
Neutral and earthingChoose three- or four-pole switching from the earthing arrangement, neutral strategy and protection study.
Synchronising / closed transitionSeparate engineered scope requiring suitable synchronising protection, interlocks and utility agreement; not a standard ATL600 ATS feature.

Engineering & Build Highlights

  • 100% mechanical and electrical interlocking prevents dangerous simultaneous mains and generator closure
  • Automatic weekly generator test exercise timer with on-load or off-load selectable modes
  • Phase failure, voltage asymmetry, and frequency out-of-bounds detection on both supply sources
  • Manual bypass switch configuration allowing full maintenance of ATS components during live operation
  • Integrated trickle battery chargers (Lovato BCE series) and engine coolant heater power feeds
  • Optional priority load shedding relays to prevent generator stalling upon sudden step-load transfers

Target Applications & Sectors

Hospitals, surgical theatres & intensive care unitsData centres, financial servers & telecoms hubsCommercial shopping malls & mixed-use towersIndustrial manufacturing & packaging facilitiesBorehole & municipal water pumping schemesHotels, resorts & residential complexes
Choose three- or four-pole switching from the earthing and neutral arrangement, generator connection and protective-device design. Four-pole switching is not a universal requirement; the engineer must coordinate the selected neutral strategy with earth-fault protection.
Closed transition temporarily parallels sources and needs suitable synchronising protection, interlocks and utility agreement. It is a separate engineered scope, not a standard feature of the pictured ATL600 controller or enclosed ATS reference. Confirm the allowable interruption for the actual load and selected equipment.

Build Your Custom ATS / Changeover Panel

Send your generator kW rating, mains supply amperage, and control preferences for an immediate proposal.

Discuss Your Requirement

Motor starting is a separate control function.

DOL, star-delta and forward / reverse starters control a motor. They do not replace a utility-to-generator transfer panel. Compare the three arrangements below, then open the motor-starter guide for the complete specification.

LOVATO Electric M1P01812230B1 enclosed direct-on-line motor starter
Enclosed DOL starterPictured: LOVATO Electric M1P01812230B1 enclosed direct-on-line motor starter.

Direct-On-Line (DOL) Motor Starter

LOVATO M1P01812230B1 is an enclosed DOL starter with START and STOP/RESET buttons, a contactor and a 13–18 A thermal overload relay. The reference is rated 7.5 kW at 400 V with a 230 V AC coil and IP65 enclosure. Select upstream short-circuit protection separately.

Motor reference7.5 kW at 400 V
Overload range13–18 A
Control coil230 V AC
Explore Direct-On-Line (DOL) Motor Starter

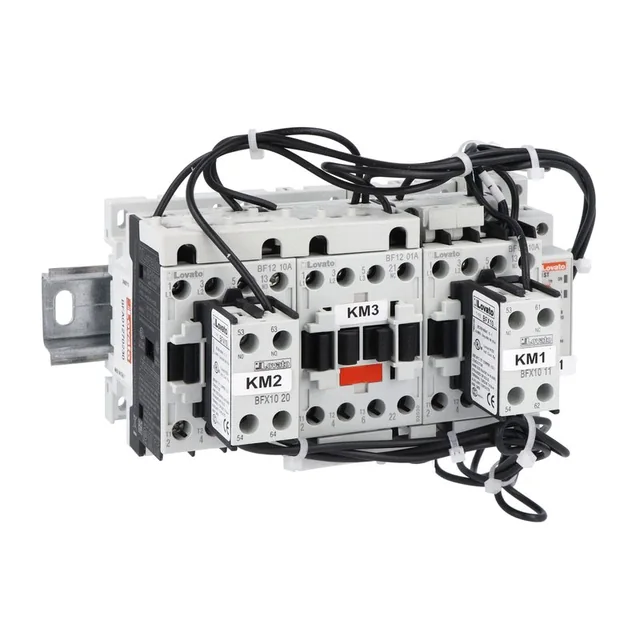

LOVATO Electric BFA01270230 open-frame star-delta starter assembly
Open-frame star-delta assemblyPictured: LOVATO Electric BFA01270230 open-frame star-delta starter assembly.

Star-Delta Motor Starter Assembly

LOVATO BFA01270230 shows the three contactors and TMST timer of an open-frame star-delta assembly, rated 11 kW at 400 V with 230 V AC coils. The RF38 thermal overload relay is not supplied; protection and enclosure must be selected separately. Confirm six motor leads and delta operation at the supply voltage.

Motor reference11 kW at 400 V
Control coils230 V AC
ScopeAdd overload & enclosure
Explore Star-Delta Motor Starter Assembly

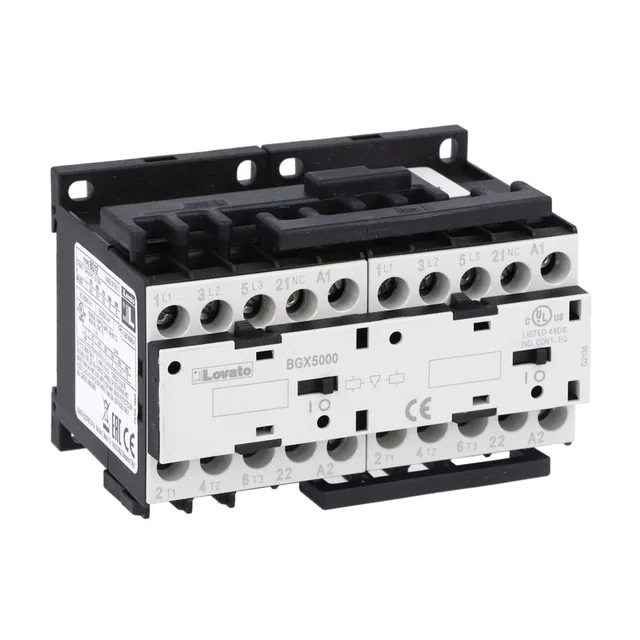

LOVATO Electric 11BGR1201A230 interlocked forward/reverse contactor assembly
Open-frame reversing assemblyPictured: LOVATO Electric 11BGR1201A230 interlocked forward/reverse contactor assembly.

Forward / Reverse Motor Starter Assembly

LOVATO 11BGR1201A230 shows two contactors with a mechanical interlock and power/auxiliary wiring for forward/reverse duty. The reference is 12 A AC-3 with 230 V AC coils. This is an open-frame contactor assembly; overload, short-circuit protection and enclosure are selected separately.

Reference current12 A AC-3
Control coils230 V AC
InterlockMechanical
Explore Forward / Reverse Motor Starter Assembly
