Industrial LED Highbays

High-bay luminaires engineered for 6m to 20m ceiling heights in factories, logistics warehouses and aircraft hangars

Open sizing tools ↓Enquire about this application ↗

Industrial LED Highbay Luminaires

Industrial factories, logistics warehouses, and agricultural packing sheds require powerful, uniform illumination mounted at heights from 6 to over 20 meters. Nairobi Power Engineers supplies professional UFO and Linear LED Highbay luminaires delivering up to 160 lumens per watt.

Featuring die-cast ADC12 aluminium thermal heatsinks, high-efficiency Lumileds/Bridgelux SMD chips, premium MeanWell/Sosen constant-current drivers, and optical polycarbonate lenses (60°, 90°, 120°), our highbays replace power-hungry 250W–400W metal halide lamps with immediate 70% energy savings.

Equipment & Range Highlights

UFO Round Highbay • IP65 / IK08

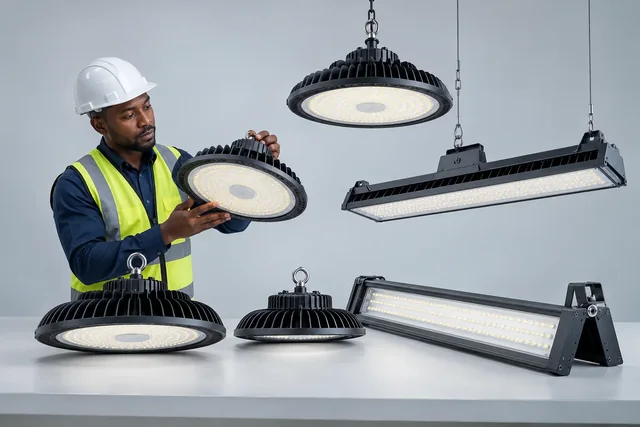

Conceptual industrial led highbays scene; exact specifications vary.

UFO Compact LED Highbays (100W – 240W)

Circular die-cast aluminium highbays with 160 lm/W output, IP65 waterproof rating, and hook/bracket suspension mounting.

Power100W (16,000 lm) • 150W (24,000 lm) • 200W (32,000 lm)

Efficacy160 Lumens / Watt

Optics60° / 90° / 120° Beam Angles

Linear Aisle Highbay • Narrow Beam

Conceptual industrial led highbays scene; exact specifications vary.

Linear LED Highbays for High-Rack Aisles

Longitudinal linear highbays with asymmetric 30x90° narrow beam optics designed specifically for deep warehouse pallet rack aisles.

Power150W • 200W • 300W

Optics30°×90° Aisle Distribution

SmartIntegrated Microwave Motion Sensors

LED Highbay Technical Reference

Wattage	Luminous Flux (Lumens)	Metal Halide Replacement	Mounting Height Range
100 W LED	16,000 Lumens	250 W Metal Halide / HPS	5 – 7 Meters Height
150 W LED	24,000 Lumens	400 W Metal Halide / HPS	7 – 10 Meters Height
200 W LED	32,000 Lumens	500 W Metal Halide / HPS	9 – 14 Meters Height
240 W LED	38,400 Lumens	600 W Metal Halide / HPS	12 – 16 Meters Height
300 W LED	48,000 Lumens	1000 W Metal Halide / HPS	14 – 20+ Meters Height

Engineering & Build Highlights

Die-cast aluminium housing with integrated vertical cooling chimney design prevents dust accumulation and heat buildup
MeanWell / Sosen isolated constant-current drivers rated for 100–277V AC with 6kV surge protection built-in
Available with plug-and-play microwave motion sensors: automatically dims to 20% when warehouse aisles are unoccupied
Tempered glass or shatter-proof optical polycarbonate lens options conforming to food industry hygiene standards
50,000-hour L70 rated lifespan backed by a 5-year comprehensive manufacturer warranty
Eye-bolt suspension hook or adjustable heavy-gauge steel trunnion mounting brackets included

Target Applications & Sectors

Manufacturing assembly & packaging plant floorsLogistics warehouses & high-bay pallet racking aislesTea, coffee & agricultural grain processing godownsAircraft maintenance hangars & workshop baysIndoor sports gymnasiums & basketball courtsAutomotive assembly & maintenance workshops

The quantity depends on ceiling height, floor dimensions, and required lux level (typically 200–300 lux for general storage). We run a free 3D Dialux simulation with your room dimensions to calculate the exact fixture count and spacing.

A 400W metal halide actually draws ~450W including ballast losses. Replacing it with a 150W LED highbay reduces power draw by 300W per fixture (a 67% reduction), saving approx. KES 25,000 per fixture per year on electricity.

Request a Warehouse Lighting Design

Send your warehouse dimensions and ceiling height for a customized Dialux layout and quotation.
