Commercial & Industrial Lighting

Q: What lux level is required for an industrial warehouse vs an office in Kenya?

Under BS EN 12464 standards, general warehouse storage requires 150–200 lux, industrial assembly lines require 300–500 lux, precision manufacturing requires 750–1000 lux, and general office desks require minimum 500 lux.

Q: What is UGR and why is UGR < 19 important in offices?

UGR (Unified Glare Rating) measures psychological glare. A rating of UGR < 19 ensures that direct light does not reflect off computer screens or cause eye fatigue, which is mandatory for modern commercial workspaces.

High-efficiency LED luminaires, intelligent lighting controls, and lighting design engineered to BS EN 12464

Commercial & Industrial Lighting — engineering concept

Open sizing tools ↓Enquire about this application ↗

Engineered Lighting Solutions

Proper illumination directly impacts worker productivity, industrial safety, and commercial visual appeal while accounting for up to 40% of building electrical load. Nairobi Power Engineers supplies professional LED lighting fixtures engineered for high luminous efficacy (up to 160 lm/W), long operating life (> 50,000 hours), and high Colour Rendering Index (CRI ≥ 80).

Designed to comply with British Standard BS EN 12464 (Lighting of Indoor and Outdoor Workplaces), our luminaire range spans industrial UFO and linear LED highbays, commercial LED panel troffers, architectural floodlights, and autonomous photocell/timer street lighting systems.

Equipment & Range Highlights

Industrial LED Highbays — engineering concept

Industrial High Efficacy • 100W to 300W

Conceptual industrial led highbays scene; exact specifications vary.

Industrial LED Highbays (UFO & Linear)

Die-cast aluminium IP65/IK08 UFO LED highbay fixtures with Lumileds/Osram LEDs, MeanWell drivers, and 160 lm/W high lumen output.

Power100 W, 150 W, 200 W, 300 W

Luminous Efficacy150 – 160 lm/W

IngressIP65 • IK08 Impact

Explore Details

LED Panel Troffers & Commercial Lighting — engineering concept

Commercial Offices • UGR < 19

Conceptual led panel troffers & commercial lighting scene; exact specifications vary.

LED Panel Troffers & Architectural Downlights

600x600mm and 1200x600mm backlit and edge-lit LED panels with micro-prismatic diffusers ensuring unified glare rating UGR < 19 for eye comfort.

Dimensions600×600 mm • 1200×600 mm

Glare RatingUGR < 19 Low Glare

CRIRa ≥ 85 True Colour

Explore Details

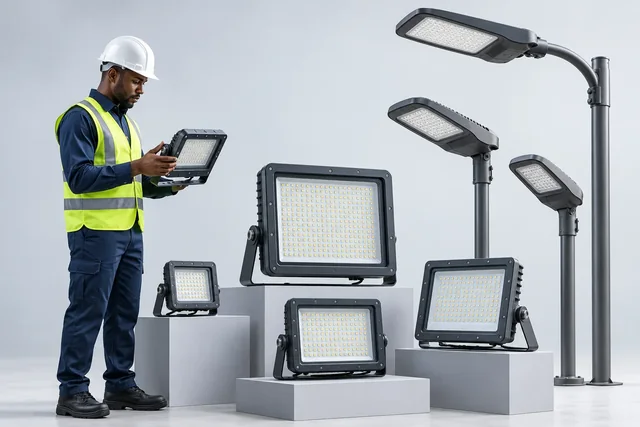

Floodlighting & Street Lighting — engineering concept

Outdoor Area • Street & Flood

Conceptual floodlighting & street lighting scene; exact specifications vary.

Floodlighting & Street Lighting Luminaires

High-power LED floodlights (50W to 1000W) and aerodynamic LED streetlights with asymmetrical optics and NEMA 7-pin photocell sockets.

Power30 W to 1000 W

OpticsType II / III / IV Asymmetrical

Surge10 kV / 20 kV SPD Built-In

Explore Details

Luminaire Photometric Reference

Luminaire Category	Power Spectrum	Luminous Efficacy	Color Temp (CCT)	Ingress & Impact
UFO LED Highbays	100 W – 300 W	150 – 160 lm/W	4000 K / 5000 K / 6500 K	IP65 • IK08
LED Panel Troffers (600x600)	36 W – 60 W	120 – 140 lm/W	3000 K / 4000 K / 6000 K	IP40 / IP54 (Cleanrooms)
High-Power LED Floodlights	50 W – 1000 W	140 – 155 lm/W	4000 K / 5000 K / 6500 K	IP66 • IK10
LED Street Lighting	30 W – 240 W	140 – 160 lm/W	3000 K / 4000 K / 5000 K	IP66 • IK09
Emergency Exit Luminaires	3 W – 8 W (Maintained)	3-Hour Battery Autonomy	Daylight Green ISO 7010	IP65 NiCd / LiFePO4

Engineering & Build Highlights

Ultra-high efficacy (up to 160 lumens per watt) reduces lighting electrical energy consumption by up to 75% compared to metal halide and HID lamps
MeanWell and Philips Xitanium constant-current LED drivers with power factor > 0.95 and THD-i < 10%
Die-cast aluminium heat sinks with airflow cooling fins prevent LED junction overheating and maintain 50,000+ hour L70 lifespan
Dialux photometric lighting simulations provided free of charge to confirm lux levels on the working plane before purchase
0-10V, DALI-2, and Zigbee/DMX dimming interfaces available for automated smart daylight harvesting
Built-in 10 kV / 20 kV surge protection devices (SPDs) protect drivers against lightning and grid voltage surges

Target Applications & Sectors

Manufacturing plant floors, machine workshops & warehousesCommercial corporate offices, boardrooms & corridorsShopping malls, retail supermarkets & vehicle showroomsHighways, municipal roads & gated estate security lightingSports stadiums, football pitches & outdoor tennis courtsSeaports, logistics container terminals & airport aprons

Under BS EN 12464 standards, general warehouse storage requires 150–200 lux, industrial assembly lines require 300–500 lux, precision manufacturing requires 750–1000 lux, and general office desks require minimum 500 lux.

UGR (Unified Glare Rating) measures psychological glare. A rating of UGR < 19 ensures that direct light does not reflect off computer screens or cause eye fatigue, which is mandatory for modern commercial workspaces.

Request a Dialux Lighting Design

Send your architectural floor plan or CAD drawing for a complete 3D photometric calculation and fixture schedule.

Discuss Your Requirement

Explore your requirements.

Try the tools relevant to commercial & industrial lighting, compare scenarios, then send the inputs to our team.

Enable JavaScript for live calculations, or ask our engineering team.

Conceptual engineering scenes illustrate applications. Manufacturer reference photos are identified separately. Confirm exact models, dimensions and ratings before ordering.
