Industrial Electric Motors

High-efficiency 3-phase and single-phase electric motors engineered for heavy industrial, agro-processing and pumping duty

Open sizing tools ↓Enquire about this application ↗Related application guide ↗

Industrial Electric Motors

Electric motors account for over 70% of total electrical energy consumption in industrial facilities and commercial buildings. Nairobi Power Engineers supplies premium three-phase squirrel cage induction motors and heavy-duty single-phase motors engineered to international IEC 60034 standards.

As stockists for world-class motor manufacturers including ABB, WEG, and premium European brands, we stock motors from 0.18 kW to 315 kW in IE2 High Efficiency and IE3 Premium Efficiency classes, featuring rugged cast iron or aluminium frames, IP55/IP65 ingress protection, Class F/H insulation, and tropicalized windings.

Equipment & Range Highlights

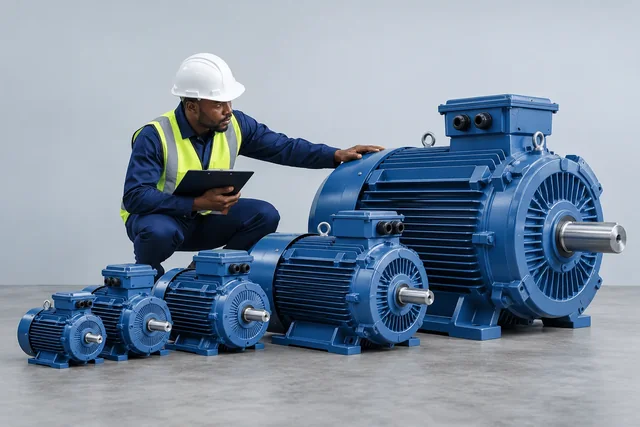

Three-Phase Induction Motors — engineering concept

Three-Phase • 0.37 kW to 315 kW

Conceptual three-phase induction motors scene; exact specifications vary.

Three-Phase Squirrel Cage Induction Motors

Heavy-duty 400V 3-phase motors in 2-pole (3000 rpm), 4-pole (1500 rpm), 6-pole (1000 rpm), and 8-pole (750 rpm) configurations.

Power0.37 kW – 315 kW

Poles2P / 4P / 6P / 8P (50 Hz)

MountingB3 Foot / B5 Flange / B14 Face

Explore Details

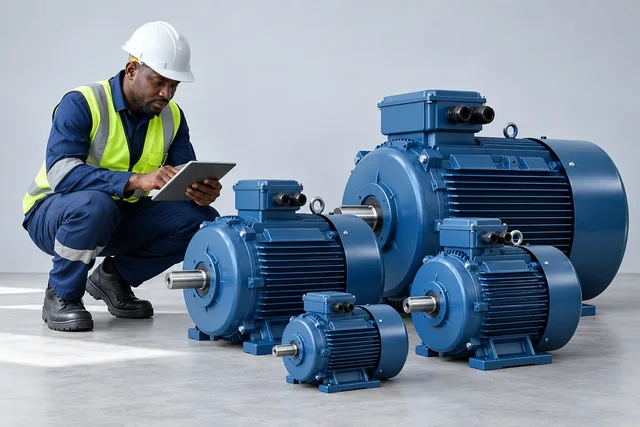

IE3 Premium Efficiency Motors — engineering concept

IE3 Premium • Energy Saving

Conceptual ie3 premium efficiency motors scene; exact specifications vary.

IE3 Premium Efficiency Electric Motors

Top-tier efficiency motors engineered to cut plant electricity consumption, reduce operating temperatures, and provide VFD-ready inverter duty.

StandardIEC 60034-30-1 (IE3 Class)

Payback12 to 24 Months via Energy Savings

Inverter DutyVFD Ready (Insulated Bearings)

Explore Details

Single-Phase Electric Motors — engineering concept

Single-Phase • High Starting Torque

Conceptual single-phase electric motors scene; exact specifications vary.

Single-Phase Dual-Capacitor Motors

230V single-phase motors equipped with centrifugal starting switch and run capacitor (Cap Start / Cap Run) for high starting torque loads.

Power0.37 kW – 3.7 kW (0.5–5.0 HP)

Torque2.5 × Rated Starting Torque

Voltage230 V 50 Hz Single Phase

Explore Details

Electric Motor Technical Reference

Parameter	Specification Details
International Standards	IEC 60034-1 (Rating & Performance), IEC 60034-30-1 (Efficiency Classes IE1–IE3)
Voltage & Frequency	230/400 V AC (≤ 3 kW) • 400/690 V AC (≥ 4 kW), 50 Hz ±5%
Enclosure Ingress Rating	IP55 standard (IP56, IP65, and IP66 available for washdown & marine environments)
Insulation & Thermal Class	Class F (155°C) insulation system with Class B temperature rise (80K limit)
Frame Materials	Frame sizes 56–132 in Die-Cast Aluminium; Frame sizes 160–355 in Rigid Cast Iron
Mounting Configurations	IM B3 (Foot), IM B5 (Flange), IM B14 (Face), IM B35 (Foot & Flange Combined)

Engineering & Build Highlights

VFD inverter duty rated: reinforced phase insulation and vacuum pressure impregnation (VPI) withstand voltage spikes
Cast iron end shields and heavy-duty pre-lubricated SKF or FAG deep-groove ball bearings for long mechanical life
PTC thermistors embedded in stator windings (frame 160 and above) for continuous over-temperature protection
Tropicalized anti-fungal winding protection and drainage plugs for high humidity East African environments
Bi-directional low-noise cooling fan and aerodynamic fan cover deliver optimal heat dissipation
Comprehensive stock of motors, spare cooling fans, terminal blocks, and flanges available in Nairobi

Target Applications & Sectors

Centrifugal and submersible borehole water pumpsIndustrial ventilation fans, blowers & cooling towersGrain milling, tea sorting & coffee pulping machineryBelt conveyors, bucket elevators & screw augersAir compressors, vacuum pumps & hydraulic power packsStone crushers, concrete mixers & mining equipment

Electricity accounts for over 95% of a motor’s total lifecycle cost. An IE3 motor reduces electrical losses by 15% to 25%, paying for the price difference in electricity savings within 6 to 12 months of continuous operation.

Yes. All our three-phase motors feature Class F/H insulation and VPI treatment suitable for VFD inverter operation. For motors 75 kW and above, we provide insulated non-drive end bearings to eliminate shaft circulating currents.

Request an Electric Motor Quote

Send your power (kW/HP), speed (RPM), and mounting style for same-day quotation and stock dispatch.

Discuss Your Requirement

Explore your requirements.

Try the tools relevant to industrial electric motors, compare scenarios, then send the inputs to our team.

Enable JavaScript for live calculations, or ask our engineering team.

Conceptual engineering scenes illustrate applications. Manufacturer reference photos are identified separately. Confirm exact models, dimensions and ratings before ordering.
