DOL & Star-Delta Motor Starting Panels

Compare three distinct motor-starting arrangements: direct-on-line (DOL), star-delta and forward / reverse. The photographs below show genuine LOVATO manufacturer references, with the supplied components and the items still required stated separately.

The pictured references use 230 V AC control coils. Choose the motor and supply ratings, overload setting, short-circuit protection, starting duty and enclosure for the application. A 400 / 415 V motor power rating does not identify the control-coil voltage.

Equipment & Range Highlights

Enclosed DOL starterPictured: LOVATO Electric M1P01812230B1 enclosed direct-on-line motor starter.

Direct-On-Line (DOL) Motor Starter

LOVATO M1P01812230B1 is an enclosed DOL starter with START and STOP/RESET buttons, a contactor and a 13–18 A thermal overload relay. The reference is rated 7.5 kW at 400 V with a 230 V AC coil and IP65 enclosure. Select upstream short-circuit protection separately.

Motor reference7.5 kW at 400 V

Overload range13–18 A

Control coil230 V AC

Explore Direct-On-Line (DOL) Motor Starter

Open-frame star-delta assemblyPictured: LOVATO Electric BFA01270230 open-frame star-delta starter assembly.

Star-Delta Motor Starter Assembly

LOVATO BFA01270230 shows the three contactors and TMST timer of an open-frame star-delta assembly, rated 11 kW at 400 V with 230 V AC coils. The RF38 thermal overload relay is not supplied; protection and enclosure must be selected separately. Confirm six motor leads and delta operation at the supply voltage.

Motor reference11 kW at 400 V

Control coils230 V AC

ScopeAdd overload & enclosure

Explore Star-Delta Motor Starter Assembly

Open-frame reversing assemblyPictured: LOVATO Electric 11BGR1201A230 interlocked forward/reverse contactor assembly.

Forward / Reverse Motor Starter Assembly

LOVATO 11BGR1201A230 shows two contactors with a mechanical interlock and power/auxiliary wiring for forward/reverse duty. The reference is 12 A AC-3 with 230 V AC coils. This is an open-frame contactor assembly; overload, short-circuit protection and enclosure are selected separately.

Reference current12 A AC-3

Control coils230 V AC

InterlockMechanical

Explore Forward / Reverse Motor Starter Assembly

Starter Topology Specifications

Topology	Pictured manufacturer reference	Protection and application
DOL	M1P01812230B1 · 7.5 kW at 400 V · 230 V AC coil	Enclosed IP65 starter, 13–18 A overload. Choose upstream short-circuit protection.
Star-delta	BFA01270230 · 11 kW at 400 V · 230 V AC coils	Open-frame three-contactor / timer assembly. Add RF38 overload and enclosure. Motor must have six accessible leads and suitable delta voltage.
Forward / reverse	11BGR1201A230 · 12 A AC-3 · 230 V AC coils	Mechanically interlocked contactor pair with wiring. Add protection and enclosure; assess reversing duty and stopping sequence.
Other control voltages	Confirm the exact manufacturer order code	400 / 415 V motor-supply ratings are not control-coil ratings. Do not substitute a different coil without checking the circuit.

Engineering & Build Highlights

Genuine Lovato BF contactors and RF series bimetallic thermal overloads
Built-in phase failure, phase reversal, and under/over voltage monitoring relays
Hand-Off-Auto (HOA) selector switches for seamless integration with pressure switches and float sensors
Clear 22mm LED pilot lamps for Power On, Motor Running, and Overload Trip indications
Heavy-duty galvanised backplates and neatly numbered terminal blocks for fast field cabling
Custom reversing starter (Forward / Reverse) options with mechanical and electrical interlocking

Target Applications & Sectors

Borehole & river intake submersible pumpsBooster water pumping sets for commercial buildingsAgricultural irrigation pivot systemsCentrifugal fans & extraction blowersBelt conveyors & bucket elevatorsAir compressors & vacuum systems

Star-delta reduces starting current and starting torque compared with DOL starting. Confirm the motor has six accessible terminals and is suitable for delta running at the supply voltage. Check the load torque and acceleration duty before choosing it; heavy starting loads may need another starting method.

Phase-sequence monitoring may be included where reverse rotation would harm the equipment. Confirm the monitoring relay, control circuit and motor requirements for the application. It is separate from the forward / reverse contactor interlock and is not assumed to be included in every starter.

Order Pre-Assembled Motor Starters

Send your motor nameplate, starting duty, control voltage and site conditions for the correct starter selection, price and confirmed lead time.

Discuss Your Requirement

Explore your requirements.

Try the tools relevant to dol & star-delta starter panels, compare scenarios, then send the inputs to our team.

Enable JavaScript for live calculations, or ask our engineering team.

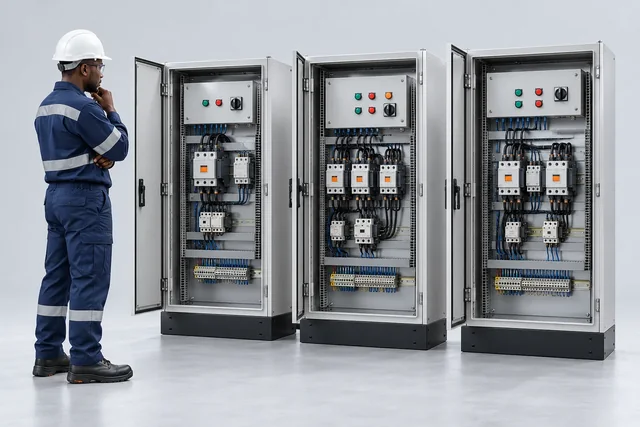

Conceptual engineering scenes illustrate applications. Manufacturer reference photos are identified separately. Confirm exact models, dimensions and ratings before ordering.
