Continuous Power & UPS Systems

Zero-break mission-critical power protection, high-efficiency online UPS, and intelligent battery systems

Open sizing tools ↓Enquire about this application ↗

Continuous Clean Power Solutions

Voltage sags, utility blackouts, frequency fluctuations, and switching surges pose constant threats to critical healthcare equipment, data centres, banking networks, and automated manufacturing lines. Nairobi Power Engineers provides turnkey continuous power solutions engineered for absolute reliability.

From true online double-conversion three-phase UPS systems (10 kVA to 800 kVA) and modular battery energy storage banks to custom external maintenance bypass switchboards, we help specify continuity and power-conditioning requirements against the selected equipment and operating conditions.

Equipment & Range Highlights

Online Double-Conversion UPS Systems — engineering concept

Online Double-Conversion • 10 to 800 kVA

Conceptual online double-conversion ups systems scene; exact specifications vary.

Online Modular & Monolithic UPS Systems

Three-phase online double-conversion UPS units featuring IGBT rectifier/inverter technology, unity power factor (kVA = kW), and up to 96.5% efficiency in double-conversion mode.

Rating10 kVA – 800 kVA

TopologyVFI-SS-111 Online

EfficiencyUp to 96.5% (99% ECO)

Explore Details

Industrial Battery Systems — engineering concept

Battery Energy Storage • VRLA / Lithium

Conceptual industrial battery systems scene; exact specifications vary.

Industrial Battery Energy Storage Systems

Heavy-duty 10-year design life VRLA AGM / Gel batteries and high-cycle Lithium Iron Phosphate (LiFePO4) rack-mounted energy storage systems with smart BMS.

ChemistryVRLA AGM • LiFePO4

Design Life10 to 15 Years

EnclosureSeismic Battery Racks / Cabinets

Explore Details

External Maintenance Bypass Panels (MBP) — engineering concept

Wrap-Around Bypass • Zero Break

Conceptual external maintenance bypass panels (mbp) scene; exact specifications vary.

Custom External Maintenance Bypass Panels (MBP)

Wall-mounted and free-standing switchboards with mechanical interlocked rotary changeover switches allowing safe live UPS isolation and maintenance.

Rating16 A – 1600 A (4-Pole)

InterlockCastell Key / Mechanical

EnclosureIP43 / IP54 Sheet Steel

Explore Details

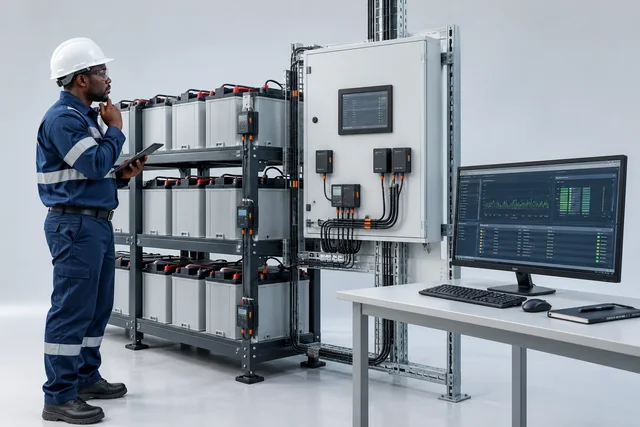

Continuous Power Monitoring & Telemetry — engineering concept

Telemetry & BMS • SNMP / Modbus

Conceptual continuous power monitoring & telemetry scene; exact specifications vary.

Continuous Power Telemetry & Monitoring

Remote battery string impedance monitoring, real-time UPS telemetry, automated email/SMS failure alerts, and central BMS integration.

ProtocolSNMP v3 • Modbus TCP

BMMCell Voltage • Internal R • Temp

CloudWeb Portal / SMS Alarms

Explore Details

UPS & Continuous Power Engineering Reference

Parameter	Specification Details
Operating Topology	True Online Double-Conversion (VFI-SS-111 according to IEC 62040-3)
Output Power Factor	Unity PF = 1.0 (e.g. 100 kVA = 100 kW continuous real power)
Input Voltage Range	380 / 400 / 415 V AC 3-phase (-20% to +15% without discharging battery)
Total Harmonic Distortion	Input THD-i < 3% • Output Voltage THD-v < 1.5% linear load
Battery Integration	Compatible with 12V VRLA AGM, 2V Deep-Cycle Gel, and 48V/51.2V LiFePO4 Lithium
Overload Capability	110% for 60 min, 125% for 10 min, 150% for 1 min, > 150% static bypass transfer

Engineering & Build Highlights

N+X modular scalability allows hot-swapping power modules without interrupting the critical server load
Unity output power factor delivers 100% real kW power to modern power-factor-corrected server loads
Cold start capability allows starting the UPS and powering loads directly from batteries during a blackout
Integrated dual input feeds (separate Mains and Static Bypass supply lines) for maximum distribution security
Lovato BCE automatic switch-mode battery chargers maintain backup batteries at optimal float charge
Complete battery temperature compensation prolongs VRLA battery life in tropical Kenyan climates

Target Applications & Sectors

Data centres, server rooms & internet service providersHospital operating theatres, ICU wards & life support systemsBanking transaction servers, ATMs & financial trading floorsTelecommunication cell towers & fiber optic transmission hubsIndustrial automation PLC racks & SCADA control roomsBroadcast studios & security surveillance control rooms

Line-interactive UPS systems take 4 to 10 milliseconds to switch to battery during a blackout, which can crash sensitive servers and medical equipment. Online double-conversion constantly converts AC to DC and back to AC, delivering seamless 0ms transfer time and perfectly clean sine-wave output.

High-quality VRLA AGM batteries typically last 4 to 6 years if ambient room temperature is maintained below 25°C. Lithium LiFePO4 batteries offer 10 to 15 years design life and withstand ambient temperatures up to 35°C without rapid degradation.

Protect Your Mission-Critical Loads

Share your load schedule or runtime requirement with our engineers for a complete UPS and battery proposal.

Discuss Your Requirement

Explore your requirements.

Try the tools relevant to continuous power & ups systems, compare scenarios, then send the inputs to our team.

Enable JavaScript for live calculations, or ask our engineering team.

Conceptual engineering scenes illustrate applications. Manufacturer reference photos are identified separately. Confirm exact models, dimensions and ratings before ordering.
