Variable Frequency Drive (VFD) Panels

Precision speed regulation, soft starting, and maximum energy efficiency for AC electric motors

Open sizing tools ↓Enquire about this application ↗Related application guide ↗

Variable Frequency Drive (VFD) Panels

Nairobi Power Engineers manufactures turnkey enclosed Variable Frequency Drive (VFD) control panels for water pumping, HVAC air handling, industrial mixing, and process machinery. By matching motor speed to instantaneous process demand, our VFD panels cut electrical energy consumption by up to 50% on centrifugal loads.

We incorporate top-tier drives including Lovato Electric VLB3 / VLA1 series and ABB ACS580 / ACS880 platforms into custom IP54 ventilated enclosures complete with line reactors, EMC filters, emergency bypass contactors, and multi-pump cascade controllers.

Equipment & Range Highlights

Lovato VLB3 Series • Compact VFD

Conceptual variable frequency drive (vfd) panels scene; exact specifications vary.

Lovato VLB3 Three-Phase Variable Speed Drives

Versatile three-phase variable speed drives featuring sensorless vector control, built-in Modbus RTU, STO Safe Torque Off, and compact footprint.

Power0.4 kW – 30 kW

Overload150% for 60s

CommunicationRS485 Modbus RTU

Enclosed Solutions • Multi-Pump

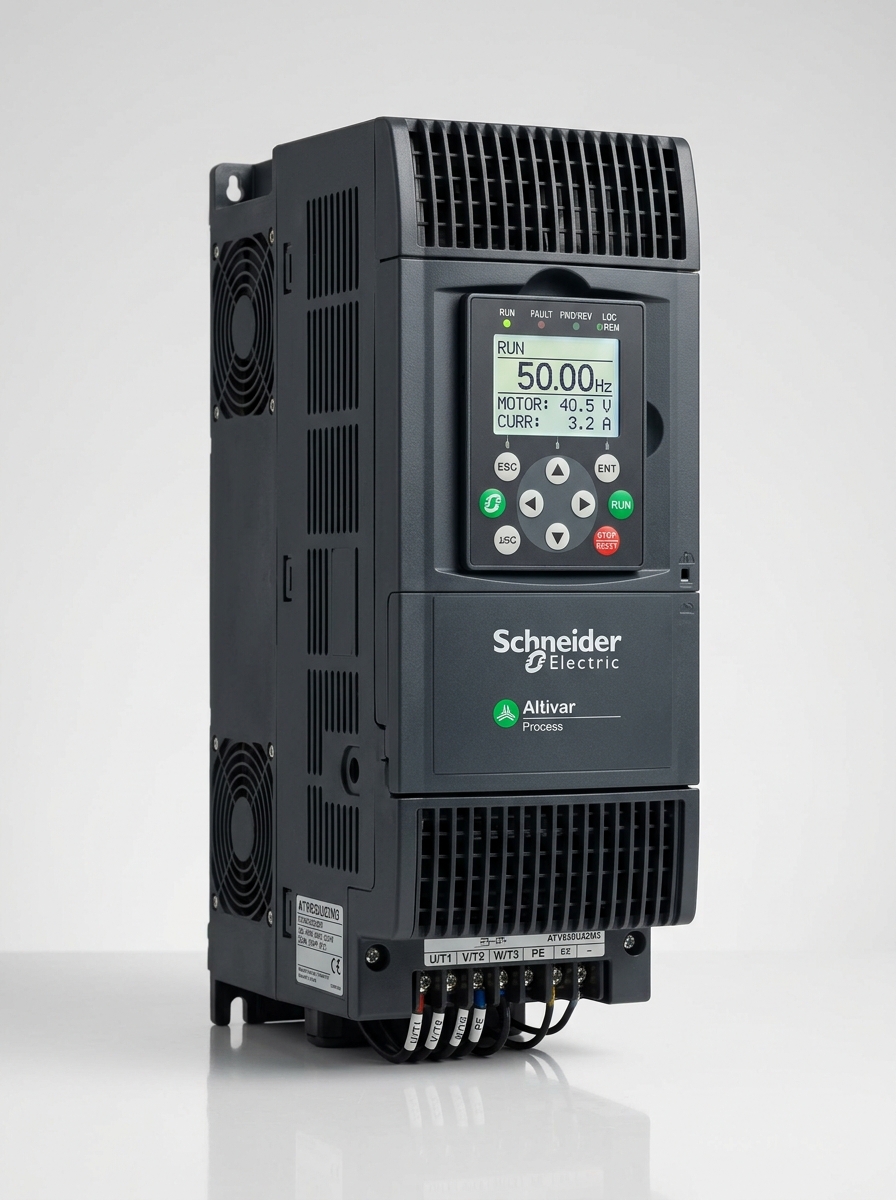

Conceptual variable frequency drive (vfd) panels scene; exact specifications vary.

Multi-Pump Constant Pressure VFD Panels

Custom engineered duplex and triplex water booster panels with pressure transducer PID control, automatic lead-lag cycling, and soft pipe filling.

ConfigurationSimplex / Duplex / Triplex

EnclosureIP54 Forced Air Cooled

ProtectionBypass Contactors

VFD Technical Reference

Parameter	Specification Details
Input Voltage Range	380 – 480 V AC ±10%, 3-phase, 50/60 Hz
Power Rating Spectrum	0.75 kW up to 315 kW (Heavy Duty / Normal Duty)
Control Methods	V/f scalar, Sensorless Vector Control (SVC), Torque Control
Harmonic Mitigation	Built-in DC chokes / AC line input reactors (IEC 61000-3-12)
Thermal Management	Filtered intake louvres + thermostat-controlled exhaust fans
Bypass Architecture	VFD / DOL Manual or Automatic Bypass contactor schemes

Engineering & Build Highlights

Energy optimization algorithms automatically reduce motor magnetization at partial loads
Built-in PID controllers with 4-20mA / 0-10V analog inputs for pressure, flow, and temperature transducers
Comprehensive motor protection: overvoltage, undervoltage, stall prevention, phase loss, and thermal I2t
Safe Torque Off (STO SIL2 / PL d) functional safety integrated for emergency stop circuits
Door-mounted digital keypad and display for real-time frequency, motor current, and fault diagnostics
EMC / RFI filters conforming to EN 61800-3 Category C2 for commercial and industrial grid compliance

Target Applications & Sectors

Commercial building constant pressure booster systemsHVAC chilled water pumps & variable air volume (VAV) fansSewage lift stations & effluent aeratorsIndustrial mixing tanks & agitatorsExtrusion & plastic injection machinerySolar hybrid borehole pump installations

Centrifugal pumps obey affinity laws: power is proportional to the cube of speed. Reducing pump speed by just 20% slashes electrical power consumption by nearly 50%, providing full payback on the VFD investment in 9 to 18 months.

Line reactors absorb mains voltage spikes, reduce total harmonic distortion (THD-i) injected back into the grid, and protect the drive rectifier from utility switching surges.

Calculate Your VFD Energy Savings

Contact our drive engineering team with your motor ratings for an ROI calculation and custom panel design.
