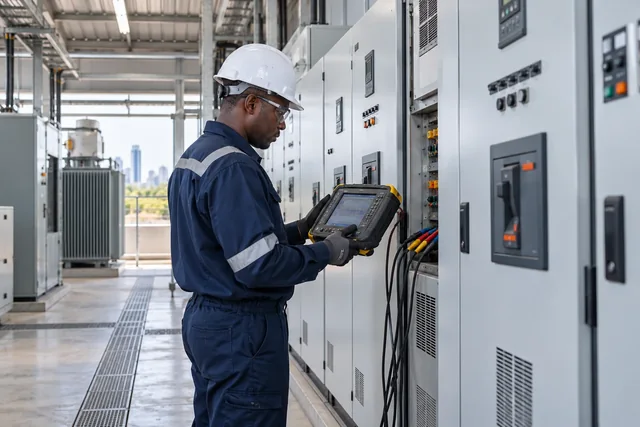

Harmonic assessment
Measure representative operating states before deciding on correction, detuning or active filtering.
Decisions before procurement
| Decision | What to establish | Evidence to bring |
|---|---|---|
| Survey | Record voltage/current distortion, spectra, power factor and neutral loading across the duty cycle. | Measurement locations and nonlinear load inventory |
| Network interaction | Review transformer/source impedance, capacitor stages and utility/generator modes together. | Source data, bank ratings and switching states |
| Mitigation | Separate displacement power factor from distortion. A plain capacitor bank is not a universal harmonic remedy. | Measured spectrum and defined acceptance criteria |
Your project brief
- Power-quality records and measurement periods
- Transformer, generator and capacitor details
- Drive, UPS and nonlinear load schedules
- Trip, overheating or billing symptoms
Confirm the actual supply and control voltage. Kenyan projects commonly specify 230/240 V single-phase or 400/415 V three-phase; the selected equipment must match the measured supply and manufacturer rating.
Engineering methods
Related guides
Choose a reference or send your BOQ
Compare relevant product families, then confirm the exact rating, control supply and duty. Price and availability are confirmed with your enquiry.
Technical references
These references support planning. The exact model documentation and a project-specific engineering review govern the final specification.
