Low-voltage distribution engineered around your load schedule
We supply and assemble low-voltage switchgear, main and sub-distribution boards, transfer panels and protection systems for commercial, industrial and infrastructure projects across Kenya.
Every assembly is configured around the site load schedule, the incoming supply, the prospective fault level, cable entry, access clearances and the OEM equipment you prefer — ABB, Schneider Electric or CHINT.
| Parameter | Specification |
|---|---|
| Build standard | IEC 61439-1 & 2, CE marked, ASTA / KEMA certified |
| Rated current | 125 A up to 6300 A continuous |
| System voltage | 400 / 415 V AC, 3-phase + neutral, 50 Hz |
| Fault withstand | 25 kA / 1s up to 100 kA / 1s (50 kA / 3s) |
| Internal separation | Form 1, Form 2b, Form 3b, Form 4a & Form 4b (Type 2 to 7) |
| Ingress protection | IP31, IP42, IP54 up to IP65 |

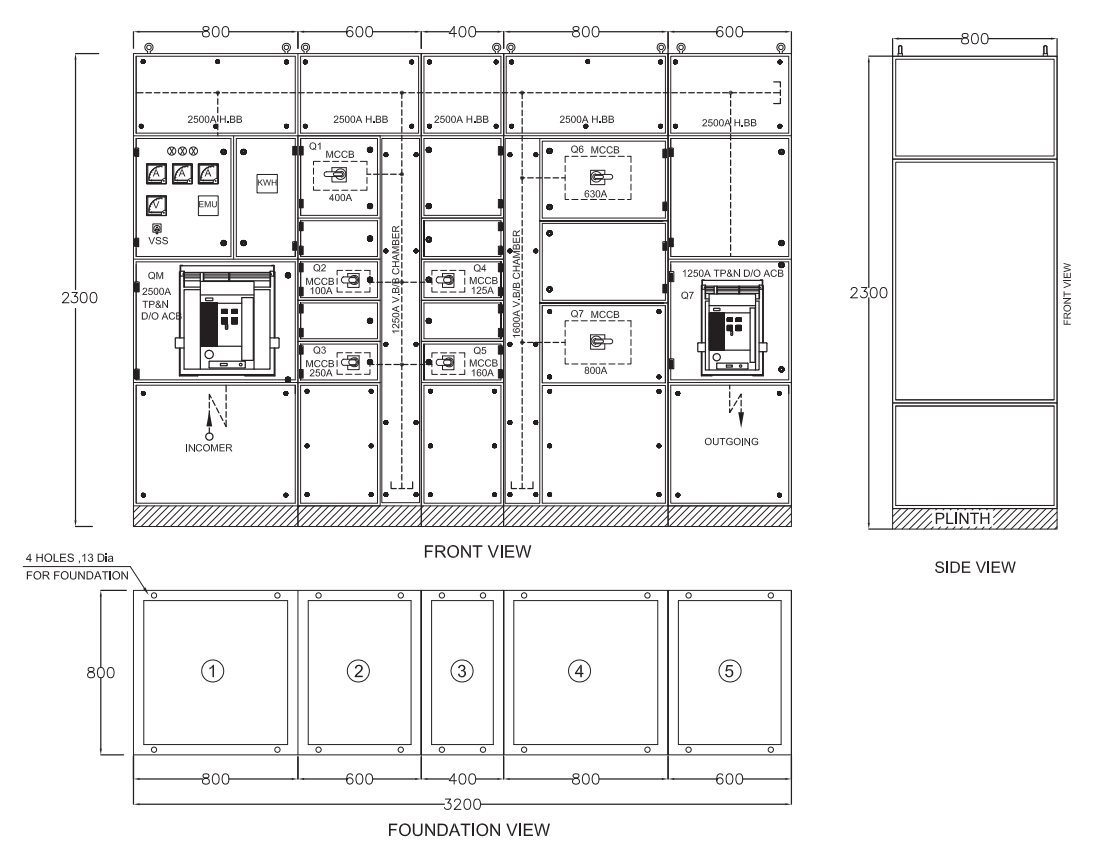

MDB & SDB PanelsPrimary incoming cubicles, intermediate sub-main boards and final branch distribution in coordinated Form 2 to Form 4b enclosures.
Circuit ProtectionACBs, MCCBs, MCBs, RCDs and Class I+II surge arresters coordinated for total selectivity and maximum uptime.
Standby PowerAutomatic and manual changeover systems with mains-failure standby control, load shedding and multi-generator synchronisation.
Outdoor DistributionWeatherproof external distribution pillars and public/industrial lighting control panels built in galvanised and stainless enclosures.

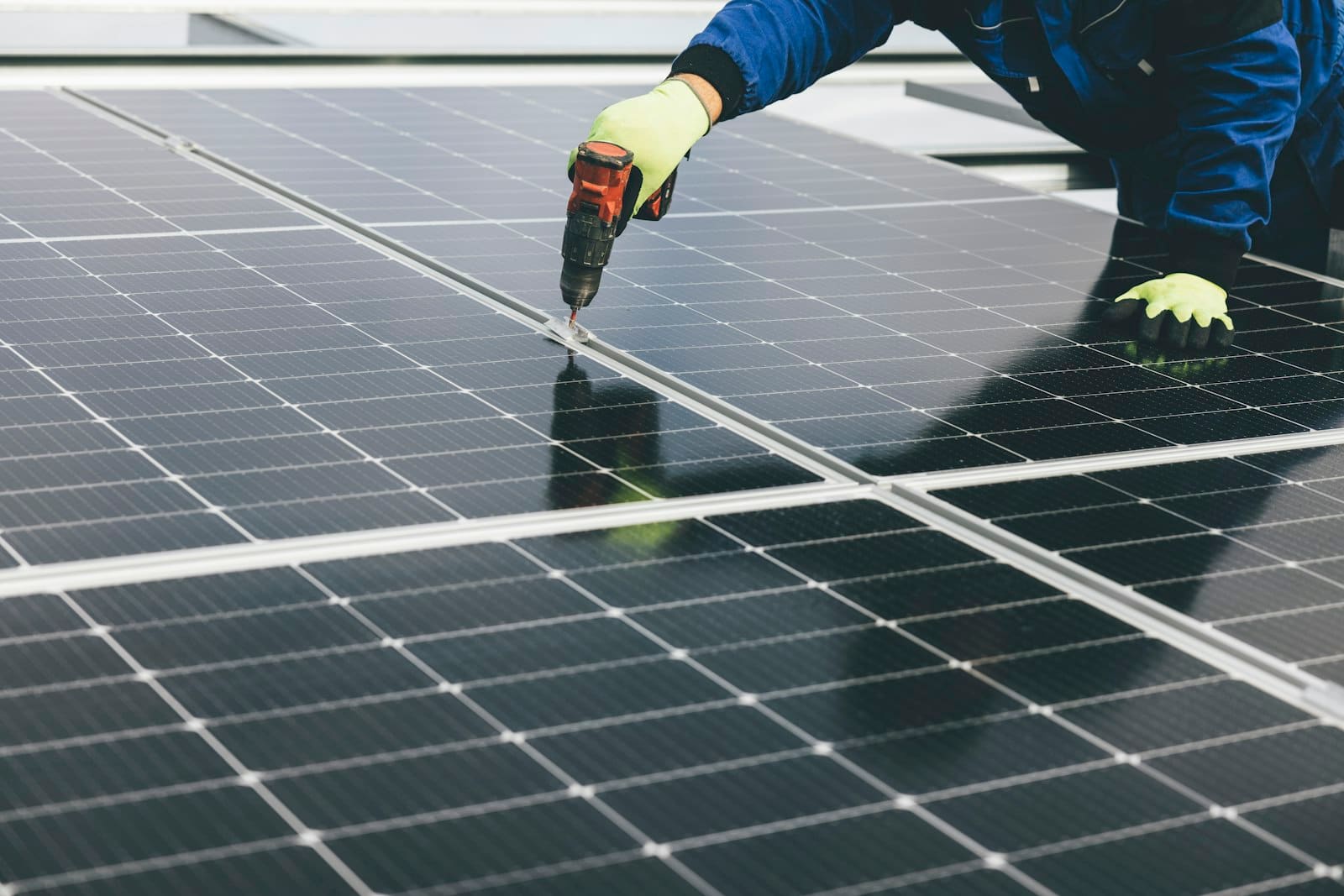

Renewable PowerSafe collection and grid integration of multiple string inverters with built-in AC disconnects, surge protection and revenue-grade metering.
Critical InfrastructureUltra-reliable dual-bus 2N/N+1 distribution switchboards with branch circuit power metering and Form 4b compartmentalised architecture.
Share the single line diagram and load schedule and we will engineer the assembly around your requirements.
