KPLC-compliant multi-tenant metering boards, utility CT metering enclosures, and smart sub-metering panelboards
Nairobi Power Engineers manufactures utility-compliant meter boards and metering panels that pass Kenya Power & Lighting Company (KPLC) inspection first time without rework. From multi-user residential apartment meter boards to heavy commercial Current Transformer (CT) metering cubicles, every panel is engineered strictly to KPLC Technical Specifications and IEC 61439-1/2.
Our enclosures feature dedicated sealed utility compartments, transparent polycarbonate viewing windows, padlockable hasps, high-conductivity tin-plated copper busbar systems, and segregated tenant consumer isolators.

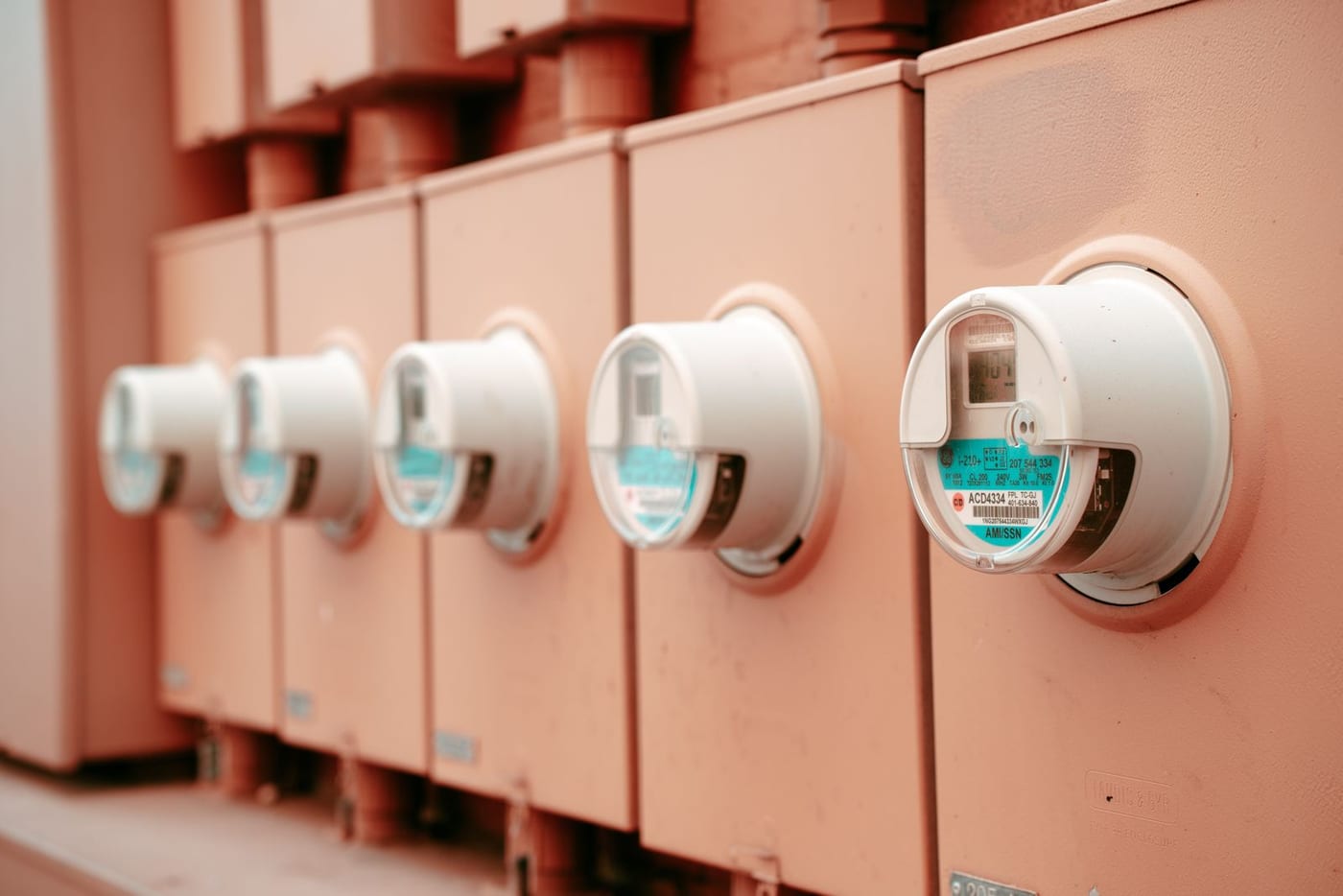

Residential Multi-Tenant • SP&N
Wall-mounted multi-way meter boards accommodating 4 to 36 single-phase KPLC prepaid or postpaid meters with individual tenant isolators.

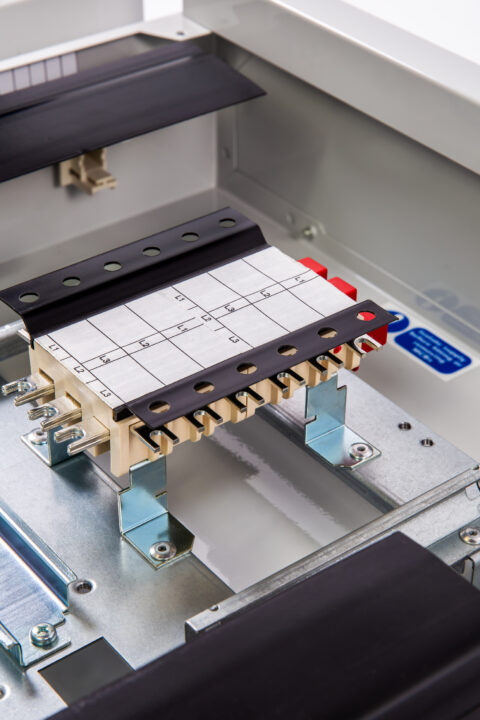

Commercial 3-Phase • TPN
Heavy-duty metering enclosures for commercial plazas, industrial parks, and shopping malls supporting 400V 3-phase meters up to 100A direct-connect.

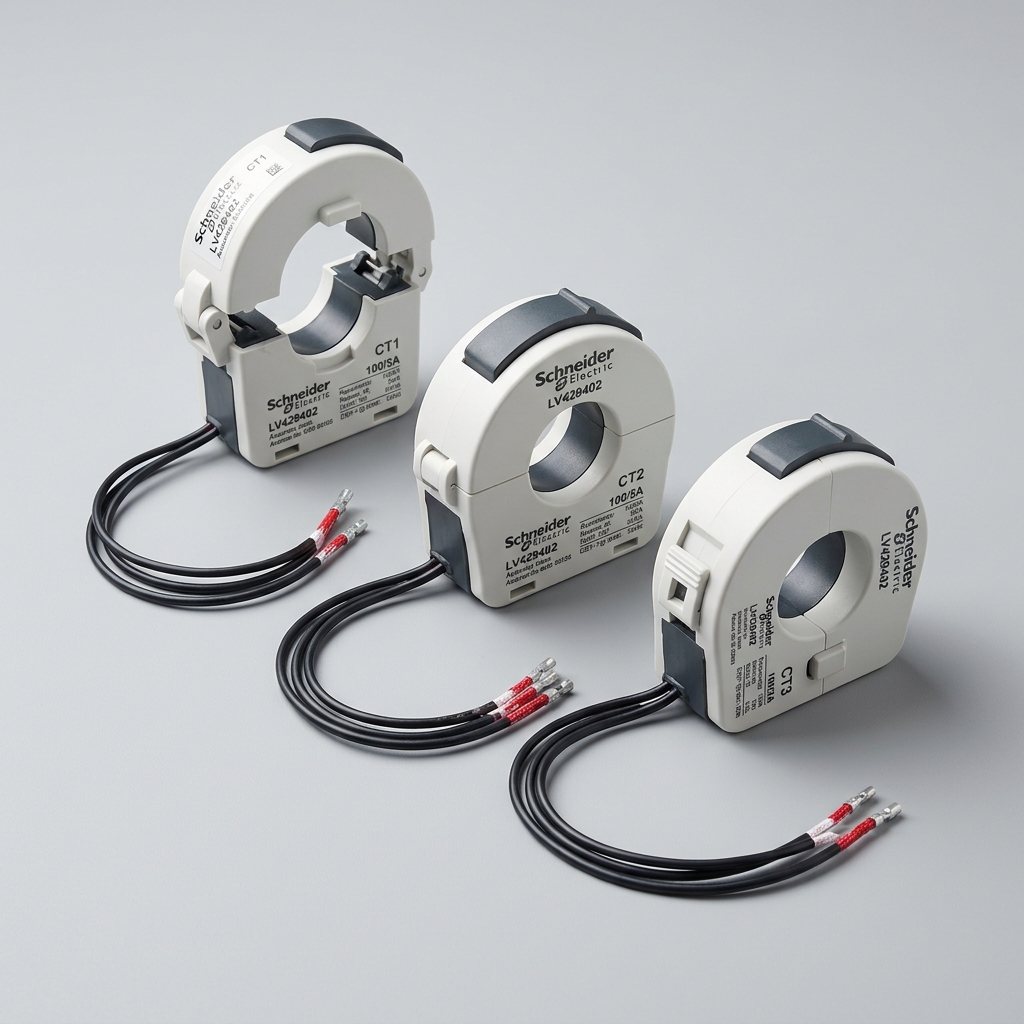

Heavy Industrial • CT Chamber
Floor-standing and wall-mounted CT metering cubicles with sealed CT chambers, test terminal blocks (TTBs), and Class 0.2s revenue meter provisions.
| Parameter | Specification Details |
|---|---|
| Utility Compliance Standard | KPLC Technical Specifications for Low Voltage Metering & IEC 61439-1/2 |
| Enclosure Sheet Steel | 1.5 mm – 2.0 mm cold-rolled mild steel with electro-galvanised pre-treatment |
| Surface Finish & Colour | Electrostatic epoxy-polyester powder coat RAL 7032 / RAL 7035 (60–80µm thickness) |
| Viewing Windows | 4.0 mm clear UV-stabilized polycarbonate windows over all meter dials |
| Sealing & Security | KPLC wire seal screws on utility compartment + padlockable outer doors |
| Busbar Construction | High-conductivity tin-plated copper (ETP Grade C101) with insulating heat shrink |
Send your apartment unit count or tenant load schedule for a fast fabrication turnaround.
