Moulded case circuit breakers (MCCB)
Feeder and distribution protection in one family, with frame sizes and trip units selected for the circuit duty.
- Range / configuration
- 16–2500 A across selected series
- Pole options
- 3P & 4P
- Catalogue brands
- ABB · LOVATO · Schneider Electric · CHINT
APPLICATION GUIDE
Feeder and distribution protection
An MCCB frame size, trip-unit rating and fault-breaking capacity describe different things. Specify each separately. Four-pole options need a review of neutral switching and protection; a 4P label does not by itself describe how the neutral is protected.
Typical applications: Main and sub-distribution feeders, machinery supplies and larger electrical loads.
SELECTION AT A GLANCE
Range / configuration
16–2500 A across selected series
3P & 4P
- 3-pole and 4-pole arrangements
- thermal-magnetic or electronic trip units by series
Coverage combines different series: ABB Tmax XT includes 16 A trip options; Schneider ComPacT NS includes 2500 A frames. Not every brand covers the full span. Breaking capacity varies with voltage and model.
Pole count describes the switching arrangement, not the complete protective function. Check which conductors are switched, which are protected and how the neutral is handled in the selected device.
Manufacturer families & published data
Compare the named series against your requirement. These are catalogue references; stock and lead times are confirmed on enquiry. Similar headline ratings do not establish an interchangeable replacement.
Schneider Electric
ComPacT NSX / NS
3P & 4P by series
ComPacT families provide different frame and trip-unit ranges; neutral switching and protection depend on the chosen configuration.
Manufacturer data & documents ↗LOVATO

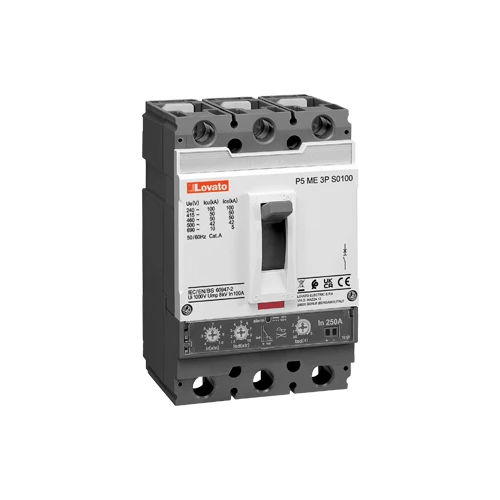

P5 electronic MCCBs
3P & 4P IEC versions
The IEC range includes sizes up to 800 A with electronic trip units.
Manufacturer data & documents ↗CHINT
NM8N MCCBs
3P & 4P options by frame
Thermal-magnetic and electronic options; review current, fault duty and neutral arrangement for the exact frame.
Manufacturer data & documents ↗Manufacturer references reviewed 2026-09-25. Images identify the manufacturer stated in their captions.
Information for your component enquiry
Send the following information so the family can be narrowed to a suitable series. For an existing installation, include the full device reference and clear photographs of the nameplate and connections.
- Design current and voltage
- prospective short-circuit current
- pole arrangement and neutral protection requirements
Key selection checks: Design current; fault duty; trip characteristics.
Discuss moulded case circuit breakers (mccb) ↗Common questions
Does the listed range mean every option is in stock?
No. The range describes selected catalogue families. NPE confirms the exact series, configuration, stock and lead time against your enquiry.
Can I substitute a four-pole device directly?
Not from pole count alone. Confirm the circuit duty, neutral arrangement, dimensions, terminals, control supply and relevant protective characteristics. Four-pole availability is series-specific.
