Cable Management Systems (BS EN 61537)

Overview

Cable Management & Containment Systems

Organized, structurally sound cable containment is vital for long-term cable protection, adequate heat dissipation, and neat switchroom aesthetics. Nairobi Power Engineers manufactures and stocks heavy-duty cable management systems complying with British Standard BS EN 61537.

Our range includes pre-galvanised and hot-dip galvanised (HDG) perforated cable trays, heavy industrial cable ladders for high-voltage and heavy power feeders, 41x41mm Unistrut channel framing, wire mesh basket trays, and galvanised steel floor trunking with complete bends, tees, and risers.

Product Lineup

Equipment & Range Highlights

Containment • BS EN 61537

Perforated Heavy-Duty Cable Trays

Precision punched return-flange cable trays in widths from 50 mm to 900 mm with snap-on covers, couplers, bends, and reducers.

Widths50, 100, 150, 225, 300, 450, 600, 900 mm

Flange Height25 mm • 50 mm • 75 mm

FinishPre-Galv • Hot-Dip Galv ISO 1461

Heavy Power • High Load

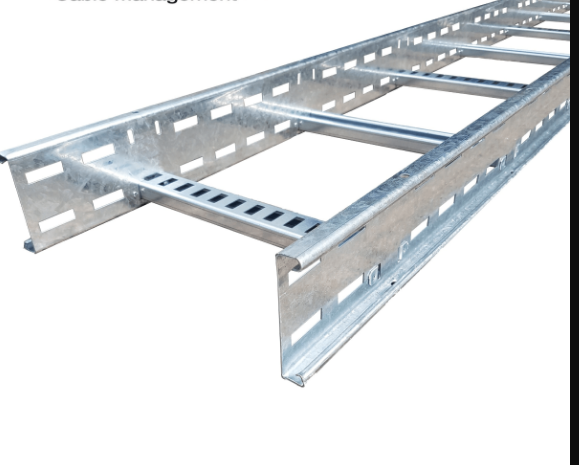

Industrial Welded Cable Ladders

Heavy-duty cable ladders with welded C-profile rungs engineered for long span supports and heavy multi-core armoured power cable runs.

Side Rail75 mm • 100 mm • 125 mm

Rung Spacing250 mm / 300 mm Welded

Load CapacityUp to 250 kg/m over 3m Span

Containment Specs

Cable Management Technical Reference

Product Line	Standard Thickness	Available Finishes	Standard Lengths
Perforated Cable Tray	1.0 mm, 1.2 mm, 1.5 mm, 2.0 mm	Pre-Galvanised (Class 3) / Hot-Dip Galv (Class 6)	2.44 m • 3.0 m
Welded Cable Ladder	1.5 mm – 2.0 mm heavy side rail	Hot-Dip Galvanised to ISO 1461 / 316 Stainless Steel	3.0 m • 6.0 m
Unistrut Channel Framing	1.5 mm – 2.5 mm gauge (41×41 / 41×21)	Hot-Dip Galvanised / Pre-Galvanised steel	3.0 m • 6.0 m
Wire Mesh Basket Tray	4.0 mm – 5.0 mm steel wire	Electro-Zinc Plated / 304 & 316 Stainless Steel	3.0 m
Floor / Lighting Trunking	1.0 mm – 1.5 mm galvanised steel	Pre-galvanised with screw-on or clip-on covers	2.44 m • 3.0 m

Key Features

Engineering & Build Highlights

Return-flange safety edges prevent damage to cable insulation during high-speed pulling operations
Hot-dip galvanised coating (minimum 65µm zinc thickness) delivers 25+ years corrosion resistance in outdoor and coastal sites
Generous perforation pattern provides maximum natural air ventilation to maintain full cable current ratings
Comprehensive range of prefabricated accessories: 90° bends, equal tees, crosses, internal/external risers, and reducers
Unistrut channel framing accessories: spring nuts, cantilever arms, threaded rods, beam clamps, and base plates
Electrical earth continuity bonding links pre-fitted on tray couplers conforming to BS 7671 regulations

Applications

Target Applications & Sectors

Electrical switchrooms & transformer substation basementsCommercial building ceiling void and riser shaft cable routingIndustrial factory overhead power distribution gridsData centre under-floor and overhead server rack containmentSolar farm cable trenching and inverter collection routesOutdoor perimeter and high-mast lighting distribution

FAQs

Cable ladders are recommended for heavy power cables (e.g. 70 mm² to 400 mm² SWA) and long support spans (over 2 meters) because they offer maximum load-bearing strength, open airflow for heat dissipation, and easy cable strapping.

Pre-galvanised sheet steel (approx. 15µm zinc) is suited for clean, dry indoor commercial buildings. Hot-dip galvanised (HDG per ISO 1461, 65–85µm zinc) coats the steel after cutting and perforation, providing heavy corrosion protection for outdoors, plant rooms, and coastal regions.
